Beschreibung

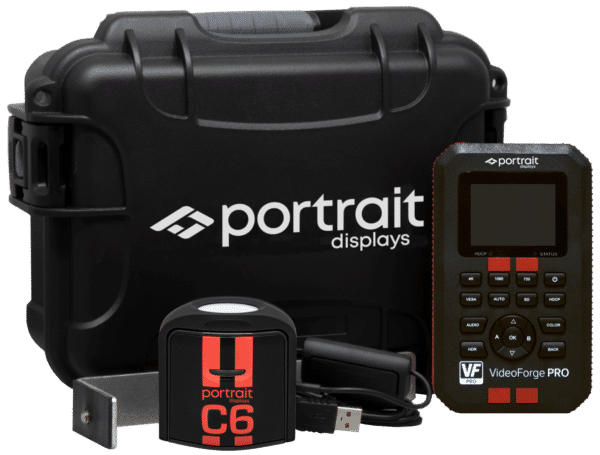

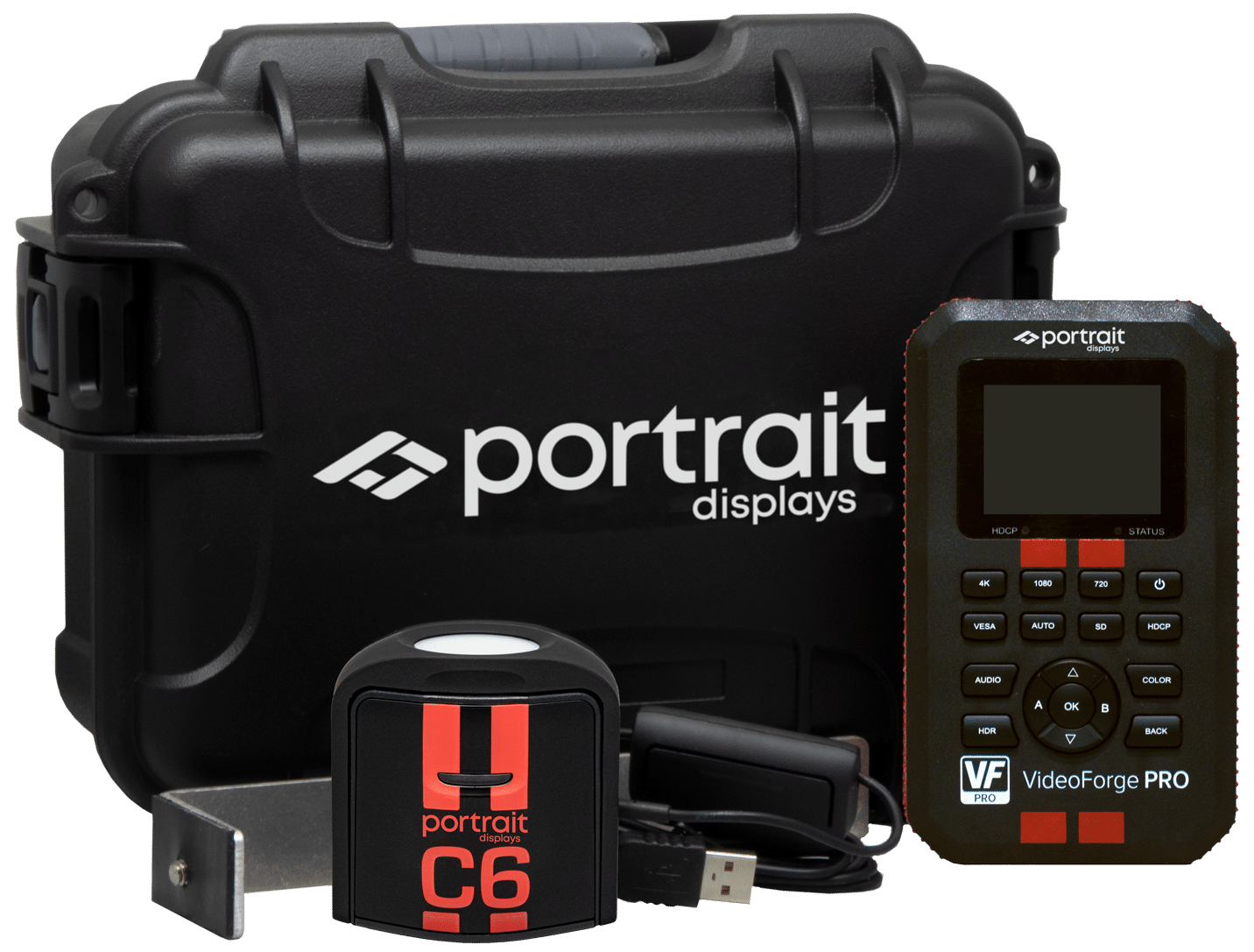

Das Portrait Displays C6 HDR2000 Colorimeter wurde entwickelt und spezifiziert, um die Luminanzgenauigkeit in einem Bereich von bis zu 2000 cd / m2 zu messen. Dieses hochmoderne Farbmessgerät kann auch vollständig mit der Calman-Farbkalibrierungssoftware vor Ort aktualisiert werden. Dies bedeutet, dass unterstützte Anzeigetechnologien automatisch aktualisiert werden, wenn das Gerät eine Verbindung mit der Calman-Software herstellt. Sie können sich auf die Portrait Displays C6 HDR2000 verlassen, um die Genauigkeit zu erzielen, die Sie selbst für die schwierigsten Kalibrierungen benötigen.
Jedes C6 HDR2000-Farbmessgerät ist im Kalibrierungslabor von Portrait Displays zertifiziert und wird mit einem NIST-Genauigkeitszertifikat (National Institute of Standards & Technology) geliefert.
VideoForge PRO ist ein leichtes Handgerät, das effiziente Videotestmuster für präzise Farbmessungen bietet. Der VideoForge PRO enthält die neueste HDR- und UHDTV-Technologie, einschließlich HDR10, HLG und Dolby Vision, und unterstützt Auflösungen von bis zu 4096 x 2160 bei 60 Hz. Es ist mit der Calman-Software für die schnelle Generierung vollständig automatisiert, während RGB-Triplett-Muster-Renderer Ihnen vollständige Graustufen-, CMS- und Luminanz-Sweeps bieten.
Portrait Displays C6 HDR2000 Specifications:
Supported Display Types
- LCD/ LED TVs
- OLED TVs
- Laser Projectors
- Multi-panel video walls
- Reference video monitors
- Computer monitors
Supported Calman® Software
- Calman Ultimate
- Calman Video Pro
- Calman Studio
- Calman Home for LG
- Calman Home for Panasonic
- Calman Home for Samsung
- Calman Home for Sony
- Calman Home Enthusiast
- Calman RGB
- Calmed
- Calman ColoMatch
Specifications
- Shipping Weight: 3 lbs
- Meter Dimensions: 2.5 x 2.6 x 1.5 inches
- Carrying Case Dimensions: 10.3 x 8 x 4.5 inches
- Cable Length: 6 feet
System Requirements
- Windows 7® or later with latest operating system updates installed (recommended: Windows 7® or later)
- 2 GHz processor (recommended: 2 GHz Dual Core Processor)
- 2 GB RAM (recommended: 4 GB RAM)
- Microsoft® .NET Framework 4.6
Calman also supports Windows 7® or later in VMWare Fusion® and Bootcamp® for Mac OS X® users.
(The Portrait Displays C6 HDR2000 works with Calman software only.)
Portrait Displays VideoForge PRO Specifications:
Technical Specifications
- HDMI 2.0(a) 600Mcsc, 2160P60 4:4:4 maximum resolution
- HDR (High Dynamic Range) Injector, and management
- 4k Supported
- Supports BT.2020
- UHD8, 10, 12 Bit Support
- Dolby Vision Support
- HDR10 Support
- HDCP 2.2 Compatible
- 2600 MAH Battery
- DC 5V Power
- HLG hybrid log gamma HDR Supported
- VideoForge PRO works with Calman software only
Resolutions Supported
- 4096×2160 (60)
- 4096×2160 (59.94)
- 4096×2160 (30)
- 4096×2160 (29.97)
- 4096×2160 (24)
- 4096×2160 (23.98)
- 3840×2160 (60)
- 3840×2160 (59.94)
- 3840×2160 (30)
- 3840×2160 (29.97)
- 3840×2160 (24)
- 3840×2160 (23.98)
- 1080p (60)
- 1080p (59.94)
- 1080P (50)
- 1080P (30)
- 1080P (29.97)
- 1080P (25)
- 1080P (24)
- 1080P (23.97)
- 1080i (60)
- 1080i (59.94)
- 1080i (50)
- 720P (60)
- 720P (59.94)
- 720p (50)
- 480P (59.94)
- 576p (50)
- 480i (59.94)
- 576i (50)
- 640×480
- 800×600
- 1024×768
- 1280×1024
- 1366×768
- 1400×1050
- 1440×900
- 1600×900
- 1600×1200
- 1680×1050
- 1920×1200
Settings
- RGB Limited (16-235) 8 Bit
- RGB Limited (16-235) 10 Bit – Not available for 4096×2160 and 3840×2160 (59.94) and (60)
- RGB Limited (16-235) 12 Bit – Not available for 4096×2160 and 3840×2160 (59.94) and (60)
- RGB Full (0-255) 8 Bit
- RGB Full (0-255) 10 Bit – Not available for 4096×2160 and 3840×2160 (59.94) and (60)
- RGB Full (0-255) 12 Bit – Not available for 4096×2160 and 3840×2160 (59.94) and (60)
- YC444 8 Bit
- YC444 10 Bit – Not available for 4096×2160 and 3840×2160 (59.94) and (60)
- YC444 12 Bit – Not available for 4096×2160 and 3840×2160 (59.94) and (60)
- YC422 8 Bit
- YC422 10 Bit
- YC422 12 Bit
- YC420 8 Bit – Only Available for 4096×2160 and 3840×2160 (59.94) and (60)
- YC420 10 Bit – Only Available for 4096×2160 and 3840×2160 (59.94) and (60)
- YC420 12 Bit – Only Available for 4096×2160 and 3840×2160 (59.94) and (60)
- AUTO EDID
- HDCP 1.4
- HDCP 2.2
- HDR-10
- HLG
- Audio 2CH
- Audio 8CH
(The Portrait Displays VideoForge PRO works with Calman software only.)
